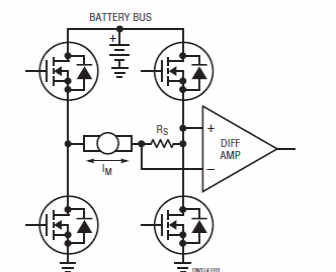

This conventional H-bridge current monitor circuit was obtained from a 2005 Linear Technology documentation. The circuit uses a differential amplifier that can be of virtually any type.
