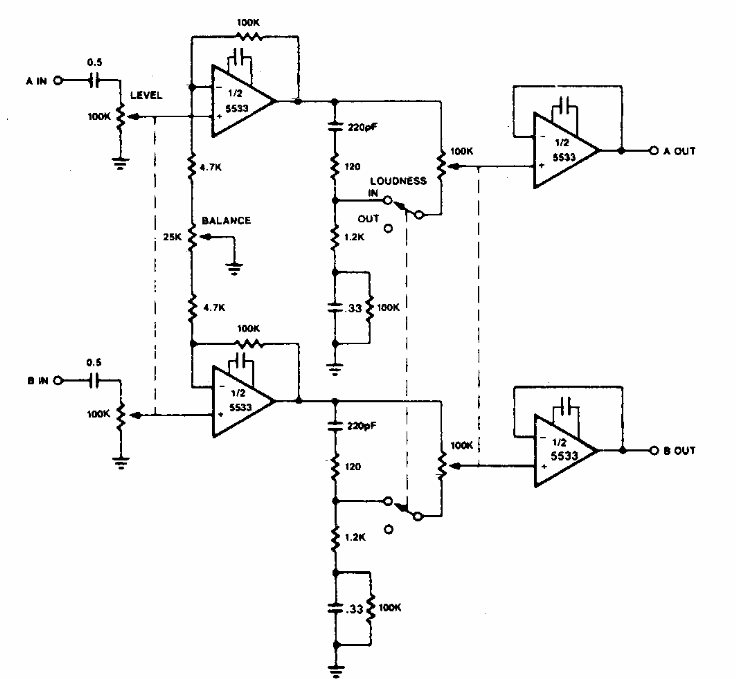

Balance and Audibility Amplifier (CB6037E)

Details
Written by: Newton C. Braga



     This circuit is from an old Signetics documentation. It can be implemented with modern operational amplifiers. The power supply must be symmetrical.
