Small Motor Protection and Control Circuit (CB5404E)

Details: Written by: Newton C. Braga

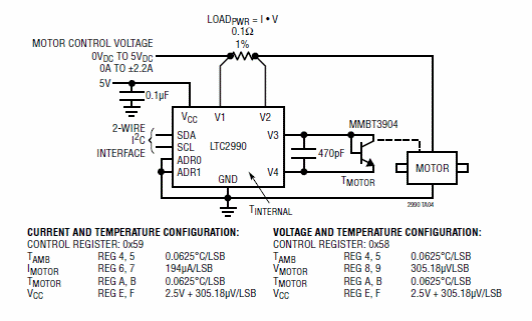

We find this circuit in a 2005 Linear Technology manual. The circuit applies to small DC motors and along with the diagram is given a wealth of information about its operation.
