High Voltage Current Sensor (CB5387E)

Details: Written by: Newton C. Braga

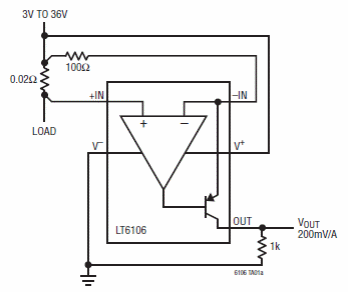

We found this circuit in a 2005 Linear Technology manual. The circuit can operate directly on 3 V to 36 V circuits being placed high on the load side. The maximum current is 5 A.
