Temperature Compensated Crystal Oscillator (CB6144E)

Details
Written by: Newton C. Braga



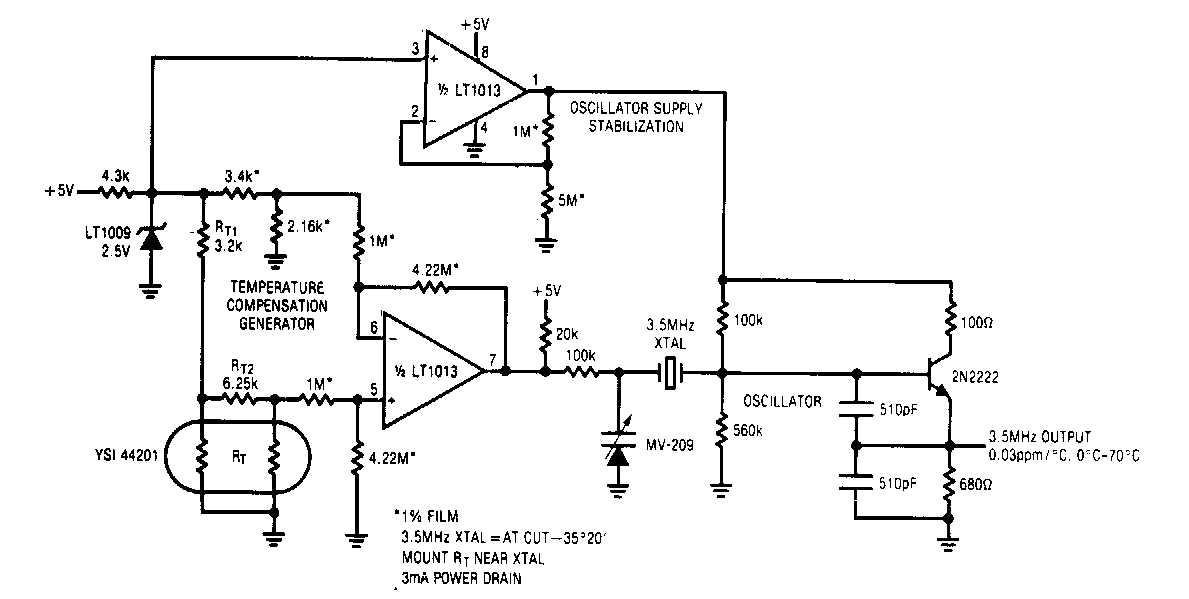

    This circuit was obtained from Linear Technology documentation from the 80's. Powered by 5 V it can be used as a shield. The components are from the era.
