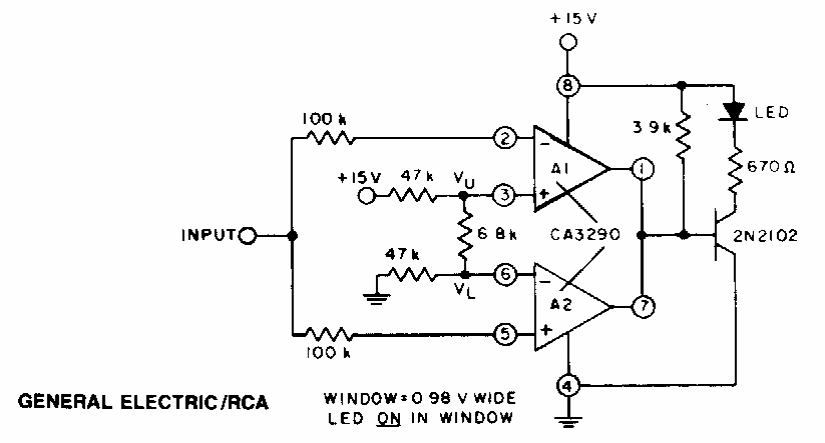

High impedance window comparator (CB6091E)

Details
Written by: Newton C. Braga



     General Electric suggests this circuit in a 1980s documentation. The operational of the time is FET-type input. Modern equivalents may be used.
