10 to 150 kHz Crystal Oscillator (CB6183E)

Details
Written by: Newton C. Braga

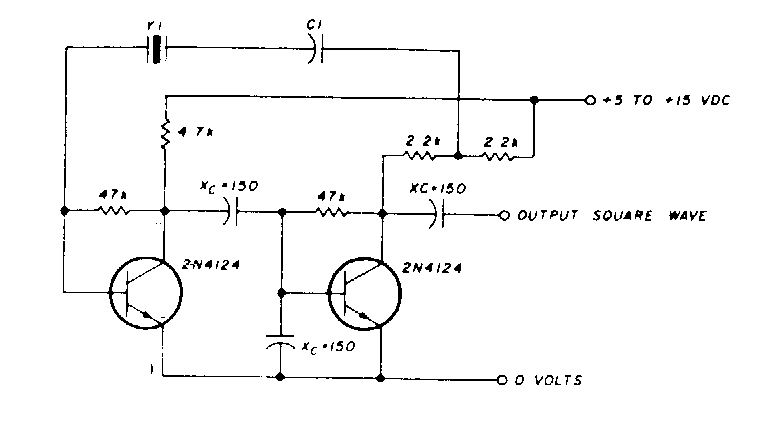

     This circuit is from a 60's documentation. The capacitance C1 can be between 20 pF and 0.01 uF depending on the generated frequency. Equivalent transistors may be employed.




| Clique na imagem para ampliar |
