Servo Control (CB5941E)

Details
Written by: Newton C. Braga

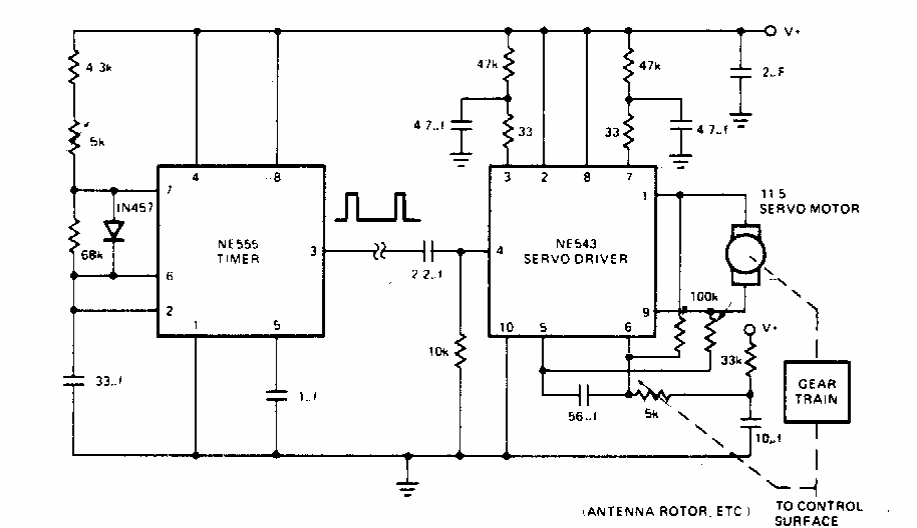

    This physical line servo control uses components that are not currently common. The circuit is from an 80's documentation and is powered by a voltage according to the servo.
