Potentiometer with 555 and 4066 (CB25244E)

Details
Written by: Newton C. Braga

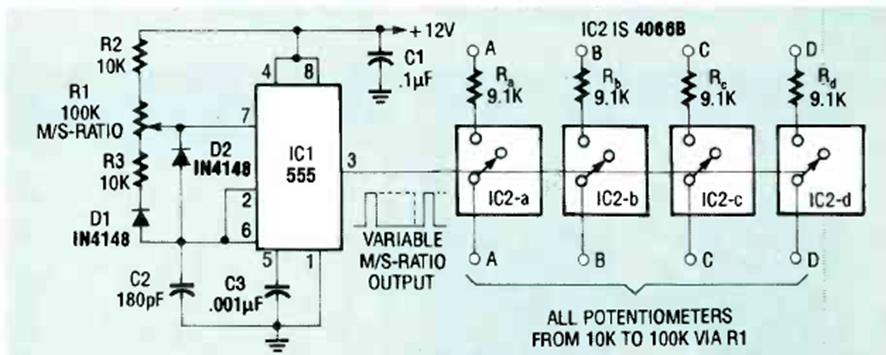

With this circuit it is possible to vary the resistance by adjusting the mark/space reaction of the 555. The circuit was found in the November 1989 Radio Electronics magazine.
