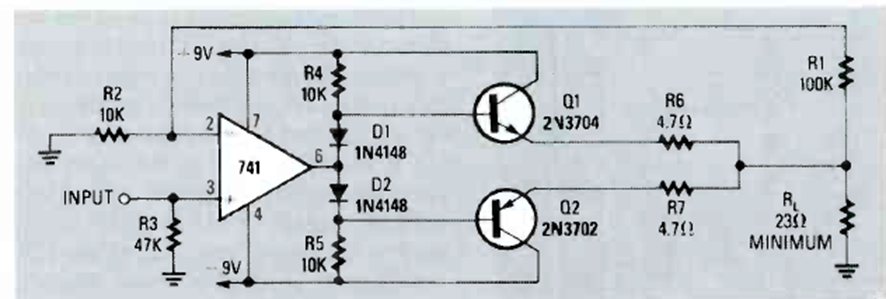

741 200 mW Amplifier (CB25291E)

Details
Written by: Newton C. Braga



This general-purpose transistor audio amplifier was found in the March 1990 issue of Radio Electronics magazine. The power supply must be dual.
