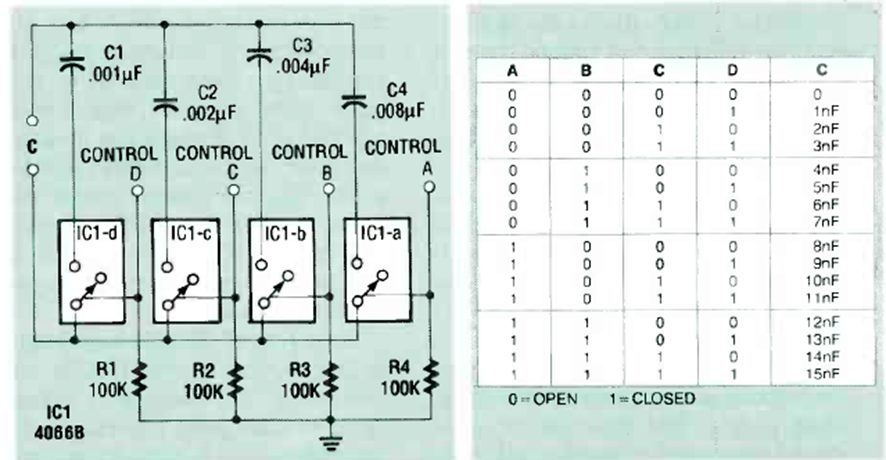

The figure shows how to obtain a capacitance digitally with 4066 switches. The table shows the capacitances obtained according to the digital commands. The circuit is from a Radio Electronics from November 1989.
