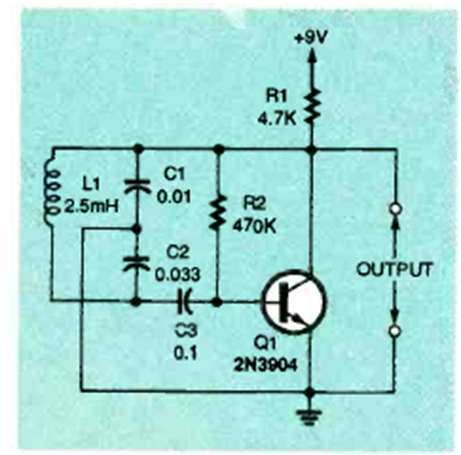

We found this conventional version of a single-transistor oscillator in the January 1996 issue of Electronics Now. The circuit can generate signals up to a few tens of megahertz, depending on the L1 coil.
Tuned Colpitts Oscillator (CB25315E)
- Details
- Written by: Newton C. Braga
