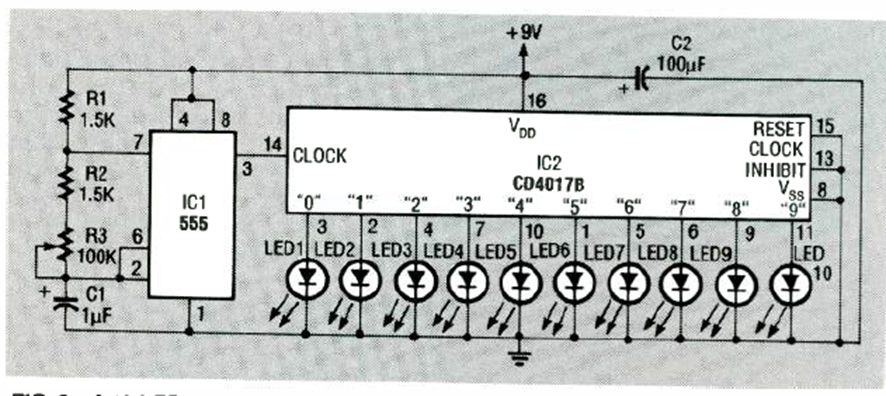

This traditional LED sequencer circuit was found in the February 1992 Radio Electronics magazine. The speed of the effect is given by C1 and adjusted by R3. A step-down resistor in series with the LEDs is recommended.
