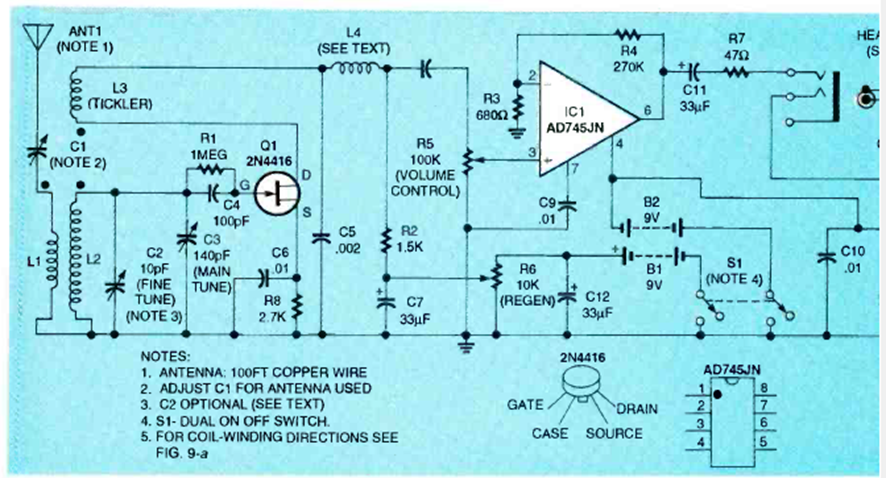

This modern regenerative receiver was featured in the March 1994 issue of Electronics Now magazine. The circuit is for the medium wave band. It can be modified for other bands by changing the coils.
| Clique na imagem para ampliar |
Regenerative Receiver (CB25690E)
- Details
- Written by: Newton C. Braga
