Power Consumption Monitor (CB25410E)

Details
Written by: Newton C. Braga

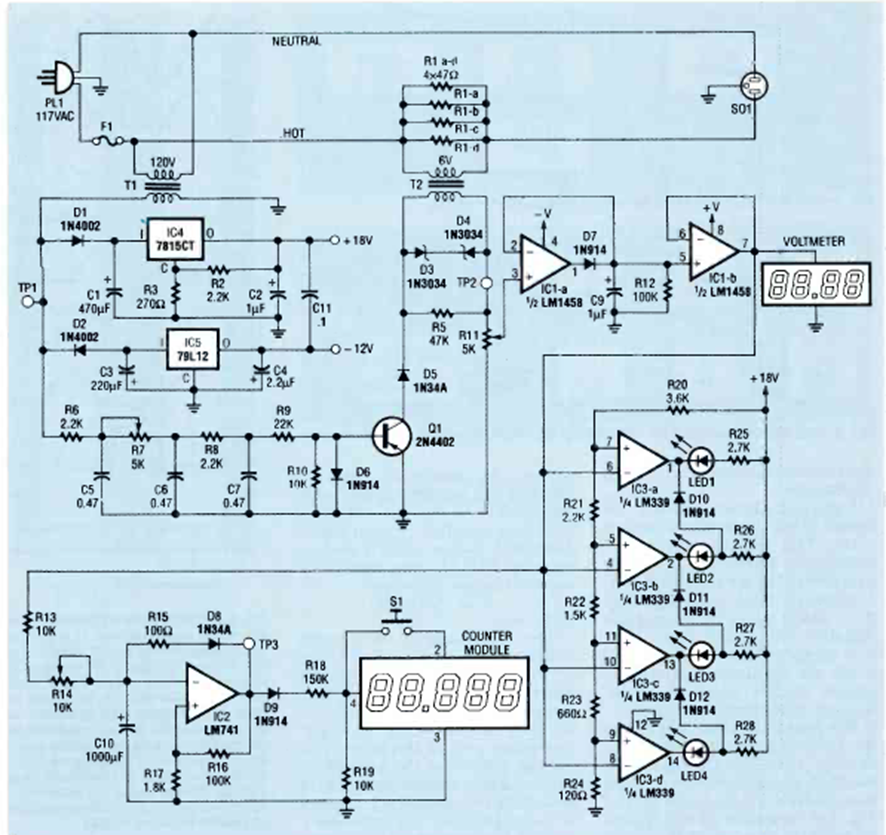

This digital circuit is from a Radio Electronics magazine from December 1991. It does not use a microcontroller, but rather discrete digital circuits of the time.
