Light alarm activating SCR (CB25481E)

Details
Written by: Newton C. Braga

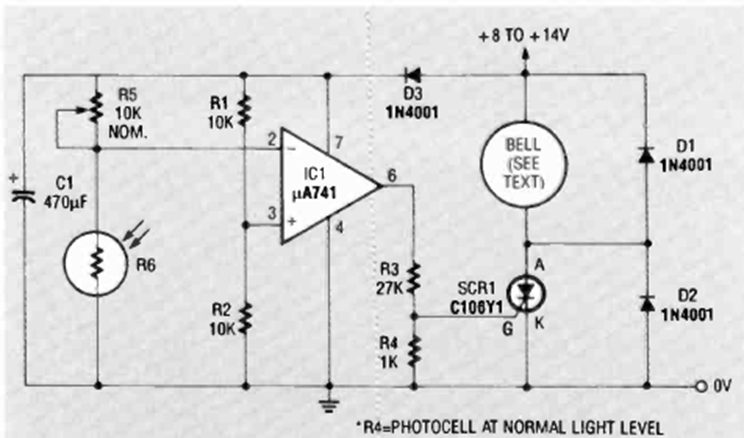

This circuit was found in the July 1992 issue of Radio Electronics magazine. The circuit is based on a 741 that activates a buzzer with oscillator. R5 adjusts the sensitivity.
