Light Switch 741 (CB25868E)

Details
Written by: Newton C. Braga

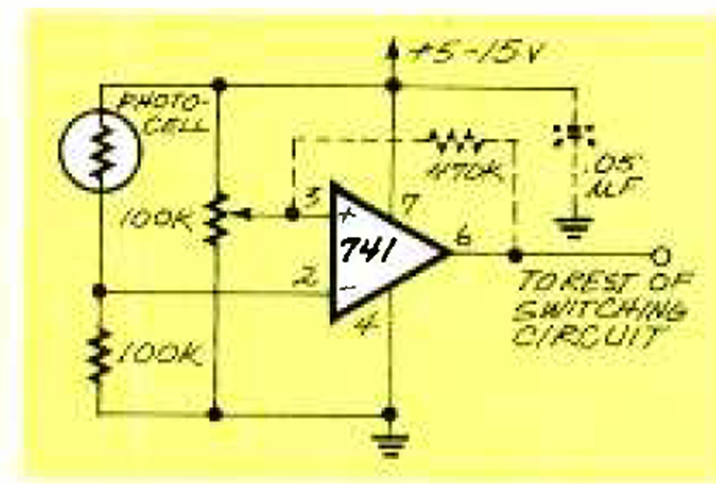

This simple power supply circuit triggers when the light on the LDR reaches the level set on the potentiometer. The circuit is from an Electronics Now from July 1995.




| Clique na imagem para ampliar |
