This circuit was found in the March 1992 issue of Radio Electronics magazine. The 10-LED circuit has two separate power supplies and Rx depends on the range of voltages measured according to the formula.
| Clique na imagem para ampliar |

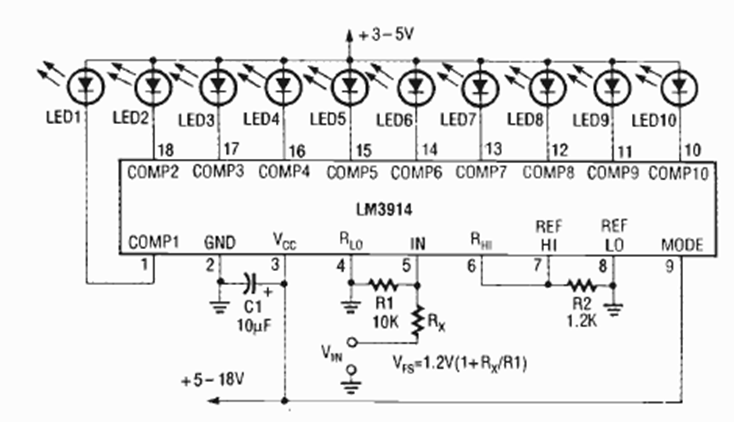

LM3914 Bargraph Voltmeter with Separate Power Supplies (CB25454E)
- Details
- Written by: Newton C. Braga
