Automatic Headlight Control 555 (CB25502E)

Details
Written by: Newton C. Braga

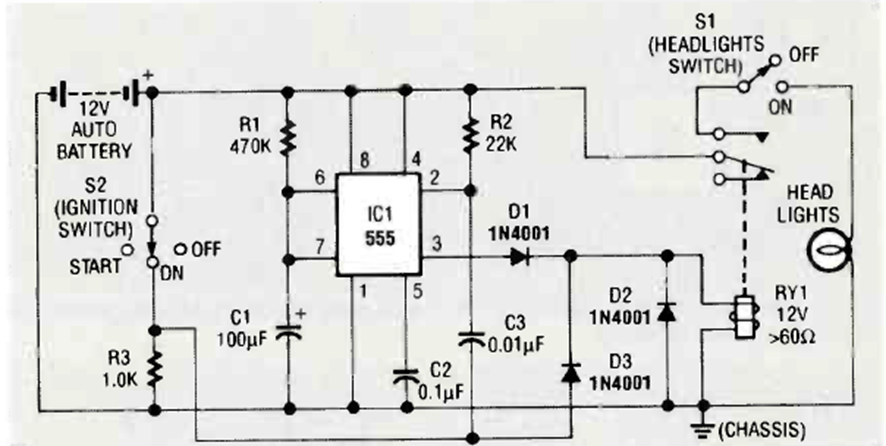

This circuit was found in the September 1992 issue of Radio Electronics magazine. The circuit does not use a transistor to drive the relay and has no adjustments.
