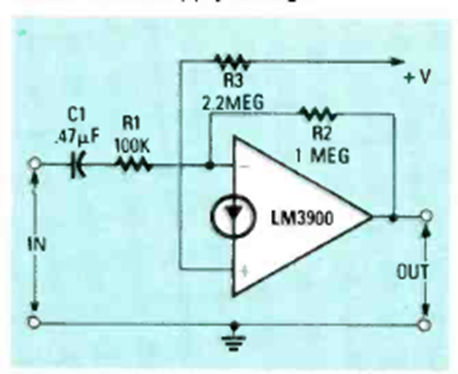

The figure shows how to implement an inverter amplifier with a Norton operational amplifier. The circuit r has a gain given by the relationship between R1 and R1 that can be changed.
AC Inverter Amplifier LM3900 (CB25166E)
- Details
- Written by: Newton C. Braga
