Digital Fuel Gauge (CB25338E)

Details
Written by: Newton C. Braga

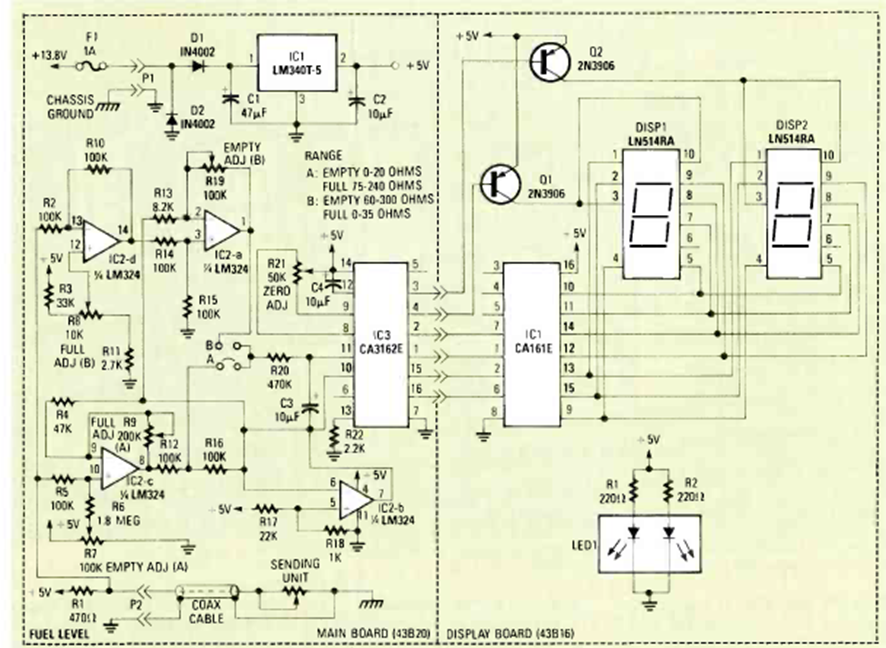

Based on the CA3161 and CA3162, this circuit was found in the July 1990 Radio Electronics magazine. The circuit is two digits only.
