Adjusting the 7805 (CB25285E)
- Details
- Written by: Newton C. Braga

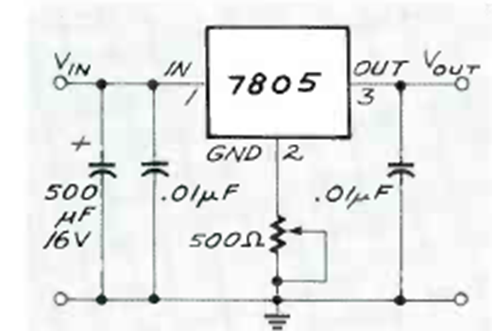

The diagram shows a simple way to adjust a 7805 to have output voltages up to 12 V. The circuit is from a Radio Electronics from March 1990. The 7805 must be equipped with a radiator.
