Function Generator with XR2206 (CB25311E)

Details
Written by: Newton C. Braga

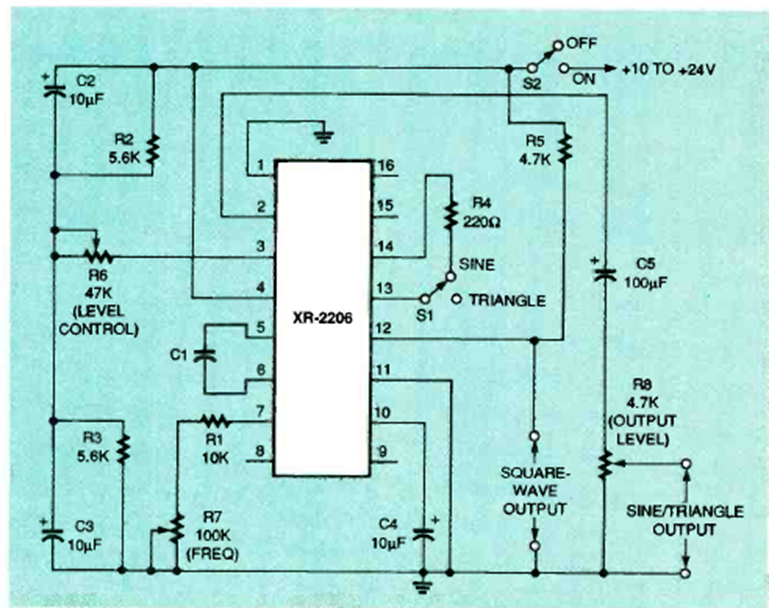

This circuit was found in the January 1996 issue of Electronics Now magazine. The circuit is powered by voltages from 10 to 24 V and has a control for the intensity of the output signal.




| Clique na imagem para ampliar |
