Basic LM3914 (CC25109E)

Details
Written by: Newton C. Braga

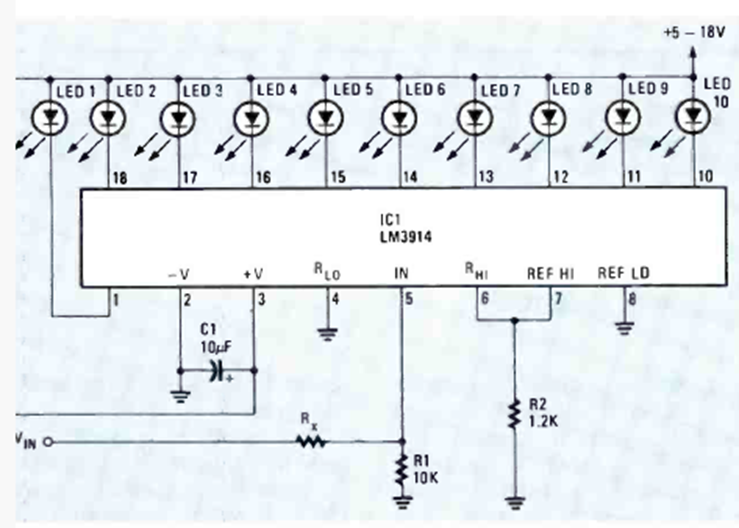

This is the basic full-scale circuit of an LM3914 for voltage measurement or voltage triggering and control. The power supply must be within the indicated range.
