Infrared alarm receiver (CIR25209E)

Details
Written by: Newton C. Braga

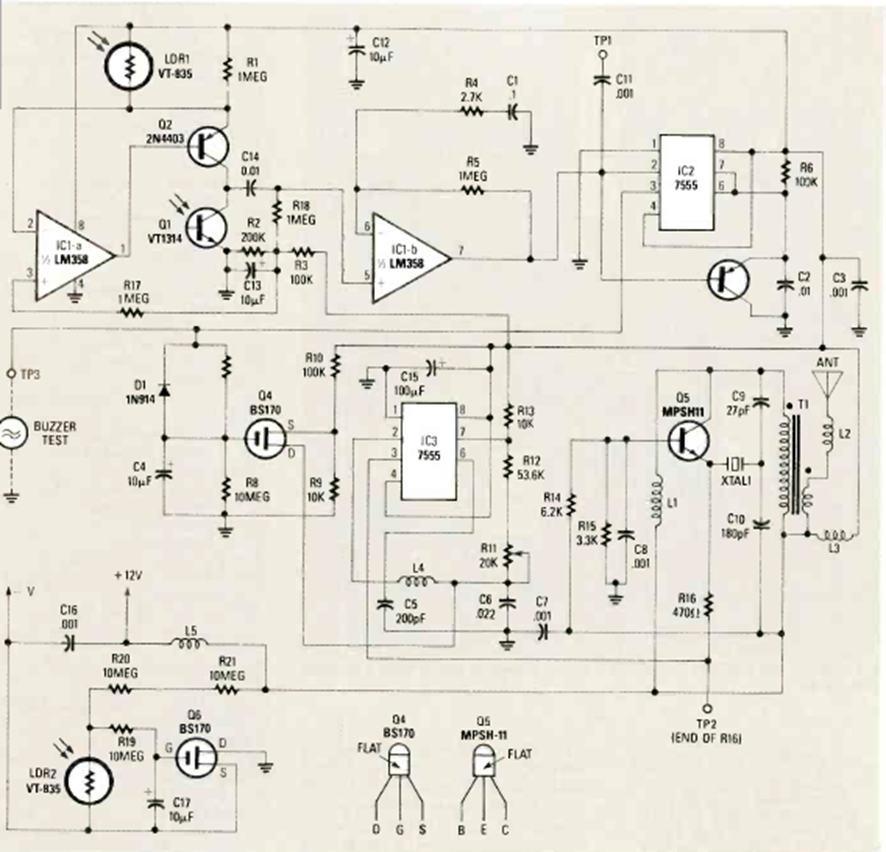

This is the receiver from the previous alarm system. The circuit is from Radio Electronics, April 1989, and has an LDR as the sensor. Optical devices should be used to improve performance.
