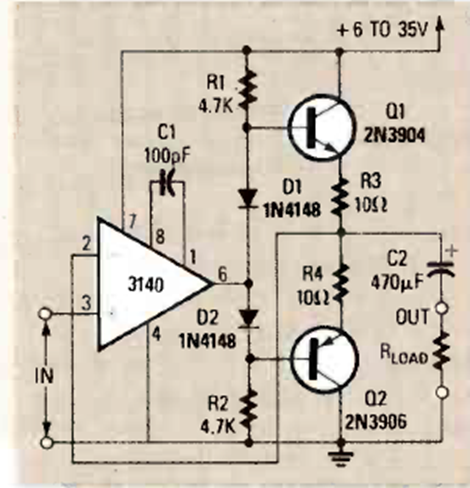

50 mA composite operational amplifier (CB25184E)

This complementary circuit increases the output power of an operational amplifier. Outputs with currents up to 50 mA can be obtained.
