Phonograph Preamplifier LM381 (CIR25278E)

Details
Written by: Newton C. Braga

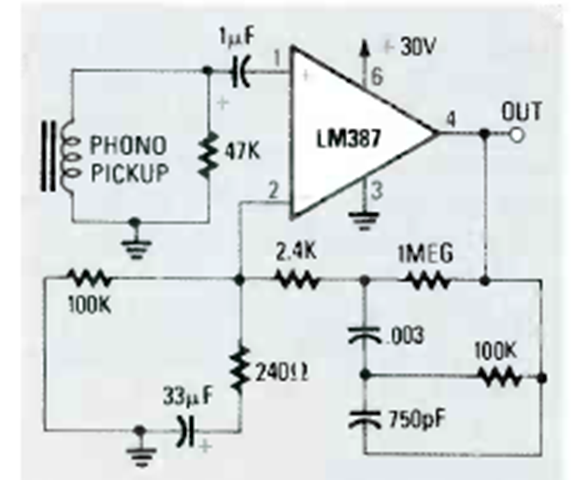

This preamplifier for magnetic cartridges was found in the February 1990 issue of Radio Electronics magazine. The circuit is in RIAA equalization.
