Cable Test (CB25206E)

Details
Written by: Newton C. Braga

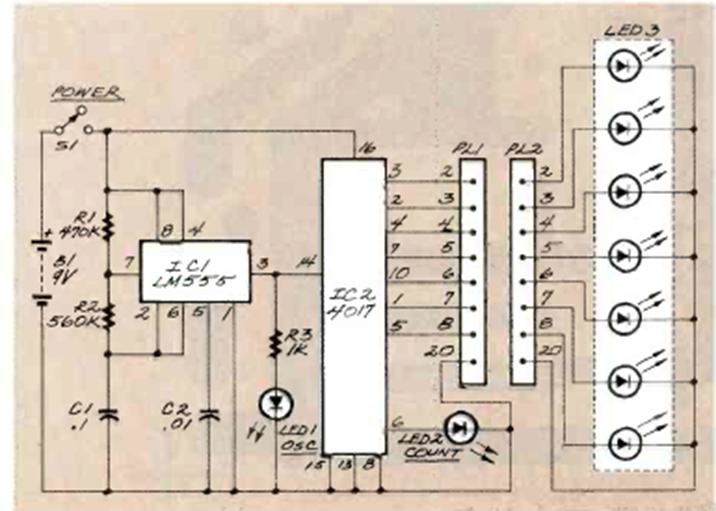

Found in the March 1989 issue of Radio Electronics magazine, this circuit is used to test printer and other cables. The indication is made by LEDs.
