Biphase VCO 4046 (CB25249E)
- Details
- Written by: Newton C. Braga

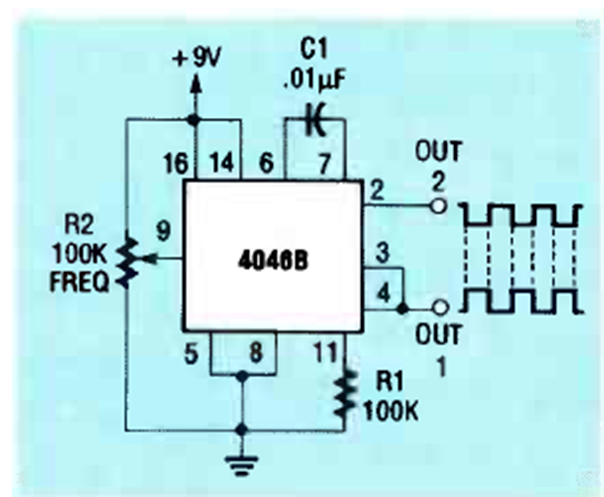

This circuit generates signals with opposite phases determined by C1 and adjusted by R2. The circuit is from a Radio Electronics from December 1989. C1 can be changed.
