Pulse-triggered 7555 monostable (CB25128E)

Details
Written by: Newton C. Braga

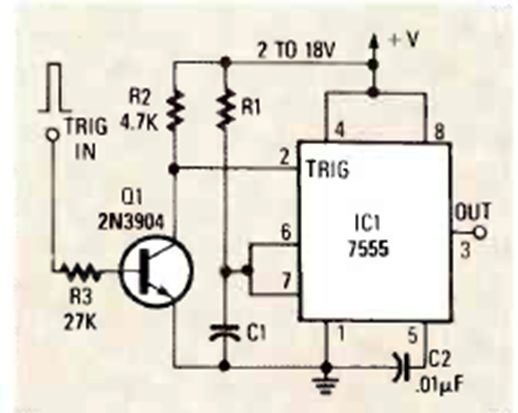

We found this circuit in a Radio Electronics magazine from April 1988; The output timing is given by R1 and C1.
