Microamplifier (CB25155E)

Details
Written by: Newton C. Braga



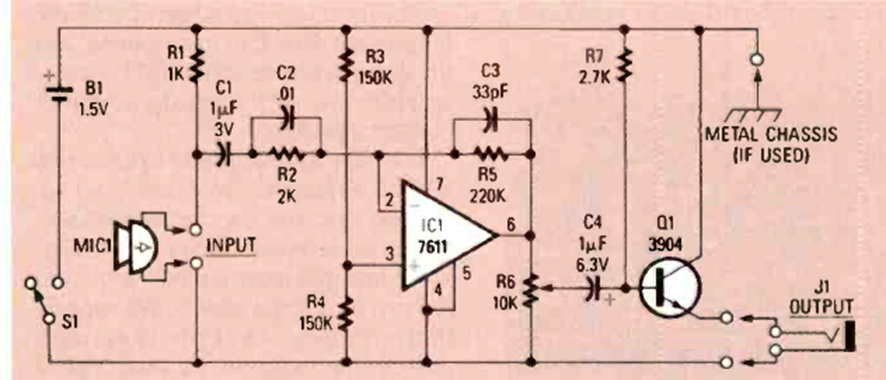

Suitable for clandestine listening and in SMD assembly, this circuit was found in the Radio Eletronics magazine of August 1988. The listening is in headphones and the amplifier is electret.
