4-Band Rectangular Generator (CB25327E)

Details
Written by: Newton C. Braga

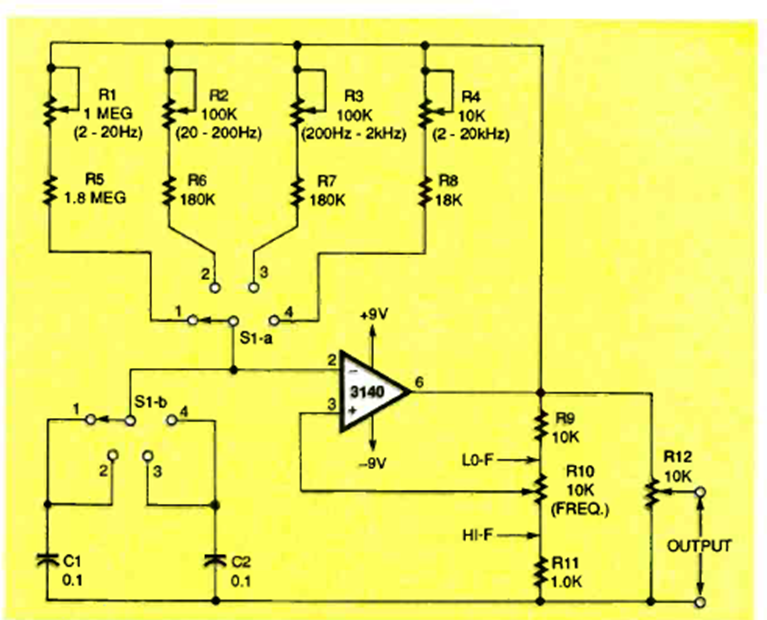

This circuit generates signals in four frequency bands with the threshold values ​​indicated in the diagram. The circuit was found in the March 1996 issue of Electronics Now magazine.




| Clique na imagem para ampliar |
