Small amplifier for LM386 turntable (CB25297E)

Details
Written by: Newton C. Braga

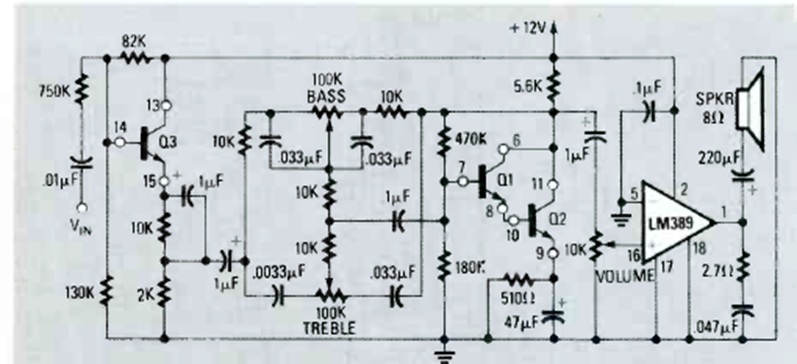

This low-power circuit was found in the March 1990 issue of Radio Electronics magazine. It consists of a tone control solution for portable turntables.
