LED Multiple VU (CB25154E)

Details
Written by: Newton C. Braga

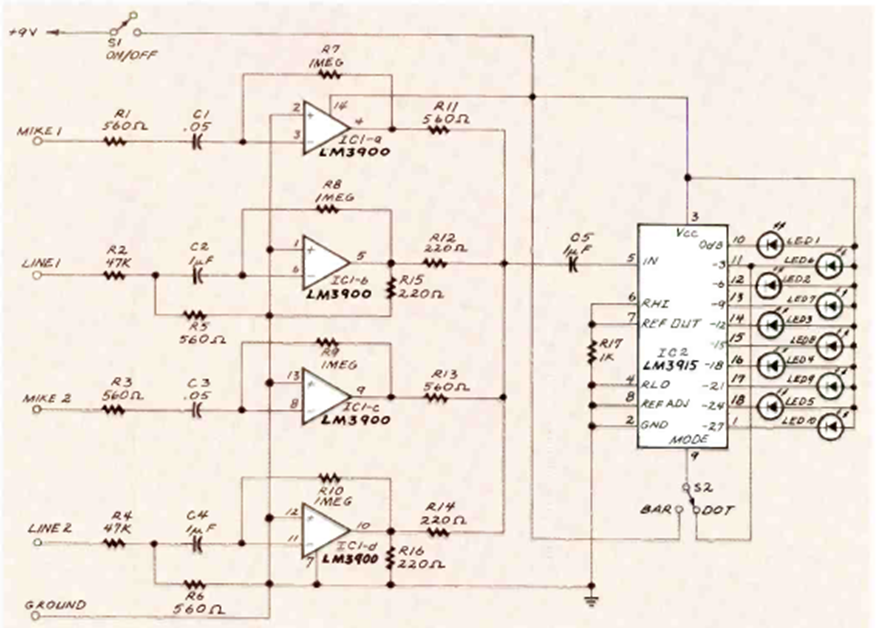

This interesting multi-channel circuit was found in the August 1988 issue of Radio Electronics magazine. It monitors the signal from 4 sound channels simultaneously.
