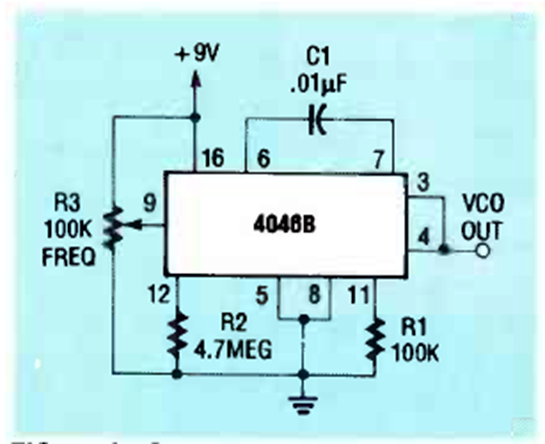

Using the 4046 PLL integrated circuit, this circuit generates signals from 60 Hz to 1.4 kHz via R2. The circuit is from a Radio Electronics from December 1989. C1 can be changed to other frequency ranges.
Narrowband VCO (CB25248E)
- Details
- Written by: Newton C. Braga
