LM3900 Pulse Generator (CB25180E)
- Details
- Written by: Newton C. Braga

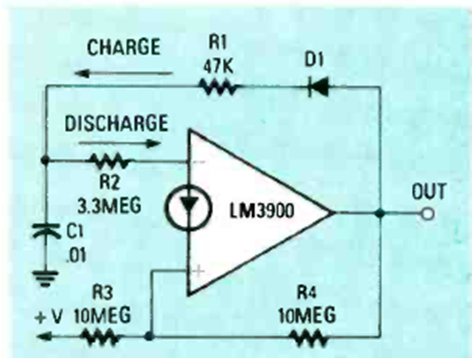

This circuit uses a Norton operational amplifier to generate 1 kHz pulses with a 1 to 60 mark-to-space ratio. The circuit can be modified to generate other mark-to-space ratios.
