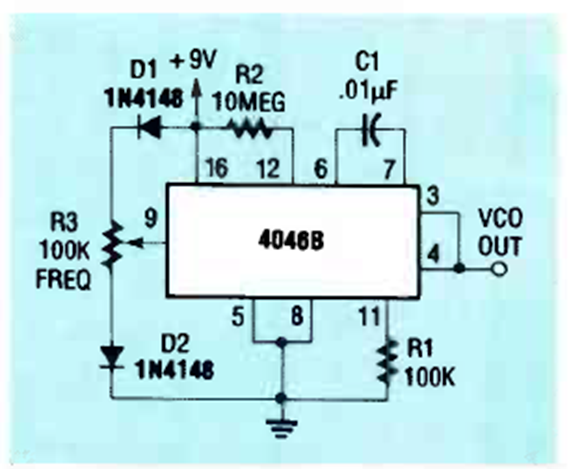

This VCO with the 4046 PLL generates signals from 0 to 1.5 kHz. The circuit is from a Radio Electronics from December 1989. Capacitor C1 can be changed for other frequency ranges.
Wideband 4046 VCO (CB25247E)
- Details
- Written by: Newton C. Braga
This VCO with the 4046 PLL generates signals from 0 to 1.5 kHz. The circuit is from a Radio Electronics from December 1989. Capacitor C1 can be changed for other frequency ranges.
