Monostable 7555 (CB25126E)

Details
Written by: Newton C. Braga

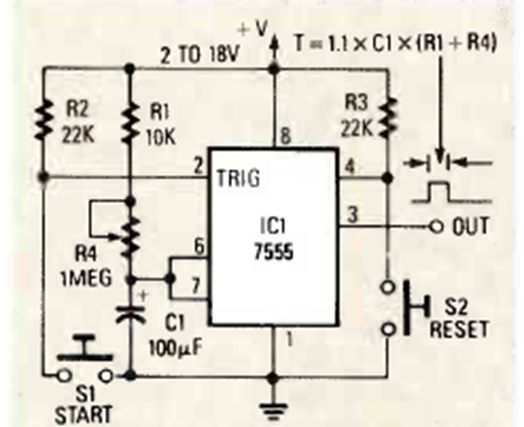

This circuit has a start and reset switches and can generate signals at long intervals determined by the adjustment of R1 and capacitor C1. We found it in the Radio Electronics magazine of April 1988.
