5-Range Voltmeter with AC to DC Converter (CB25224E)

Details
Written by: Newton C. Braga

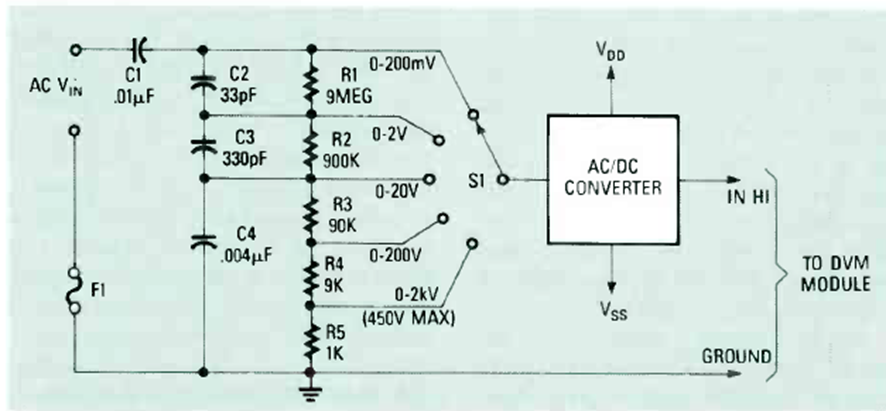

This digital instrument input circuit was found in the September 1989 issue of Radio Electronics magazine. The circuit has a high input resistance.
