Power Failure Alarm (CB25348E)

Details
Written by: Newton C. Braga

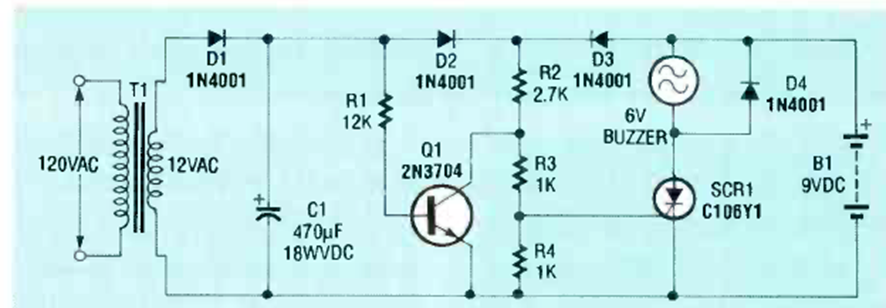

This circuit triggers an alarm when the mains power is cut off. The circuit was found in the July 1990 issue of Radio Electronics magazine.




| Clique na imagem para ampliar |
