200 Hz to 2 kHz VCO (CB25247E)

Details
Written by: Newton C. Braga

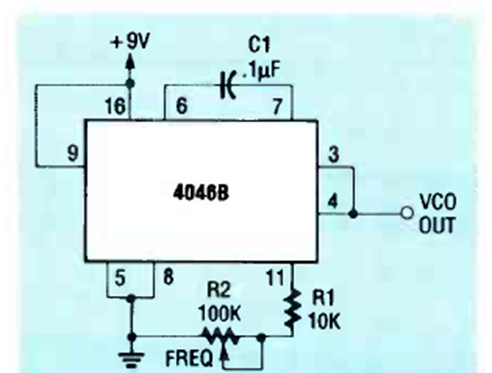

Using the 4046 PLL we found this circuit in the December 1989 Radio Electronics. The circuit generates signals in the range determined by capacitor C1.
