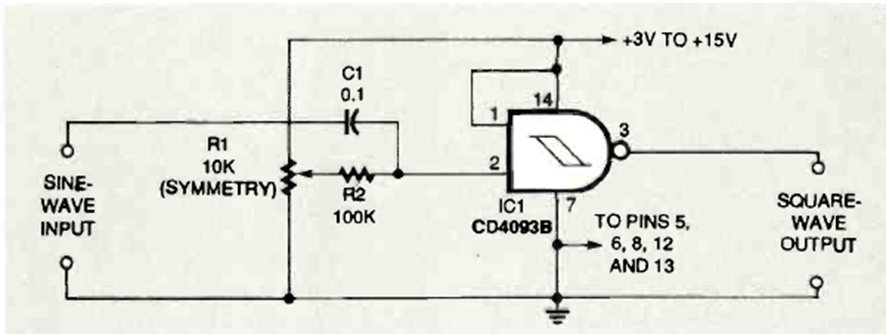

We found this circuit in an article in Electronics Now magazine from March 1996. The frequency is limited to a few megahertz and the power supply must be within the indicated range which will also determine the peak voltage of the input signal.
