Monostable with the 4001 (CB25119E)

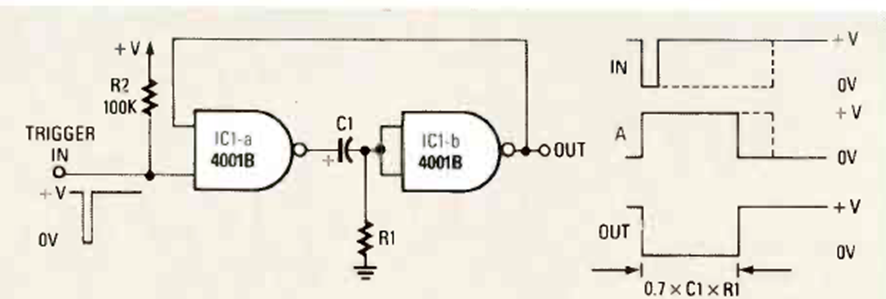

This two-port monostable of the 4001 was suggested by an article in the April 1988 Radio Electronics magazine. The timings are given by C1 and R1.
