LM3600 Bias Control (CIR25148E)

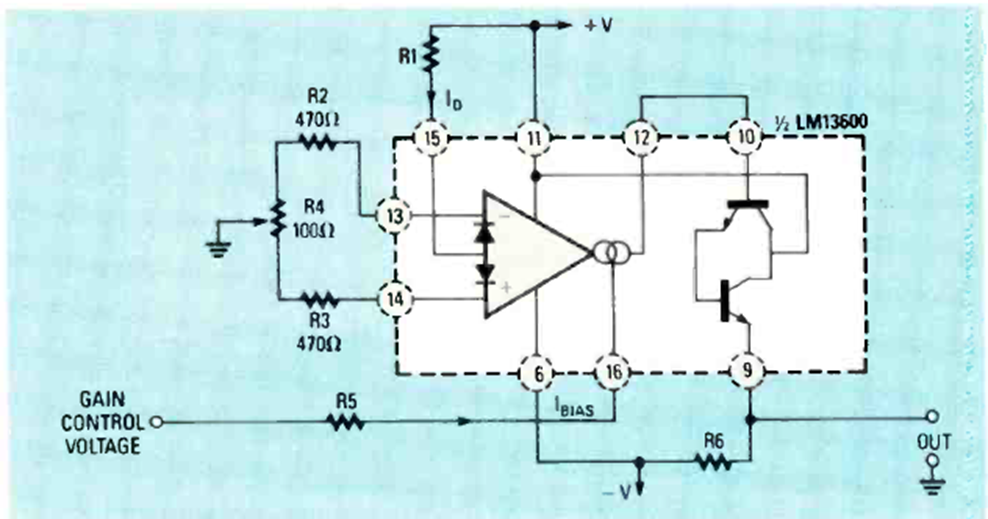

The figure shows a way to apply gain control to the LM3600 OTA. The circuit is from a Radio Electronics from July 1988.
