Stepper Motor Control 4204B (CB25245E)

Details
Written by: Newton C. Braga

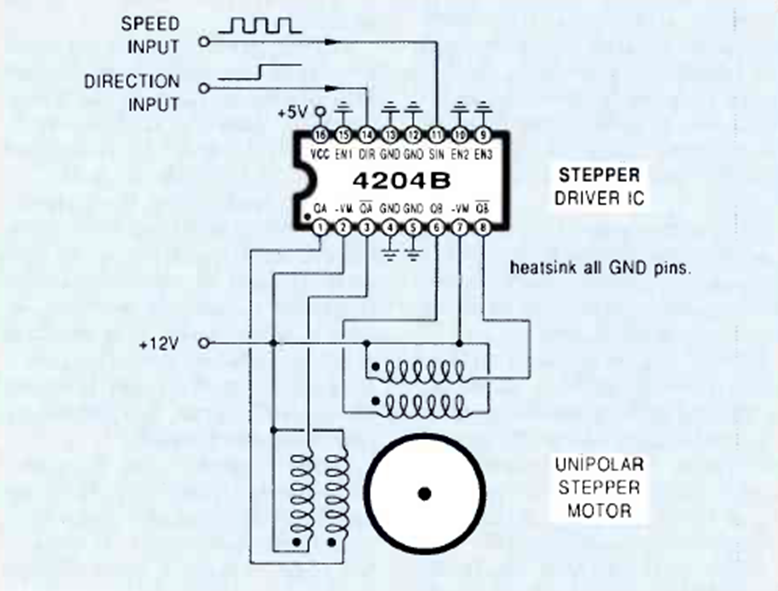

This circuit was obtained from the November 1989 issue of Radio Electronics magazine. The circuit is for motors up to about 1.5 A.
