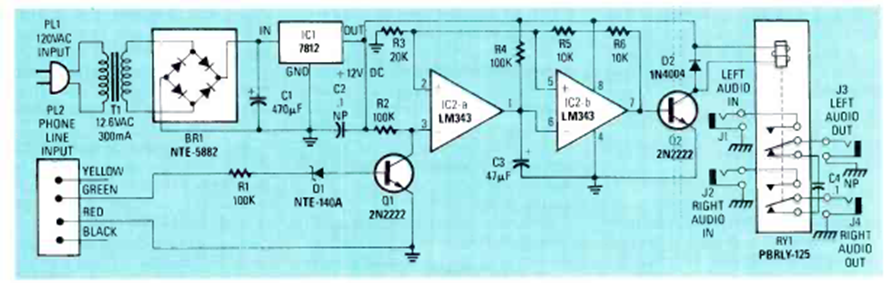

Muting Circuit (CB25267E)

This circuit mutes a system when a phone call is received. The circuit is from a Radio Electronics from December 1990.

| Clique na imagem para ampliar |
