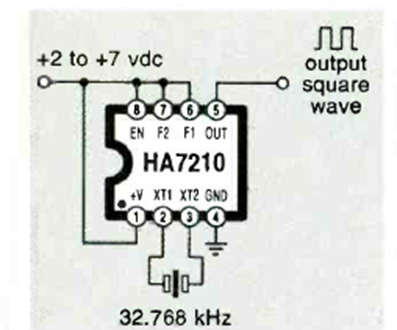

This oscillator, which operates from 2 V, was found in the June 1993 issue of Radio Electronics magazine. The circuit is based on an integrated circuit that was common at the time.
Low-power oscillator HA7210 (CB25582E)
- Details
- Written by: Newton C. Braga
