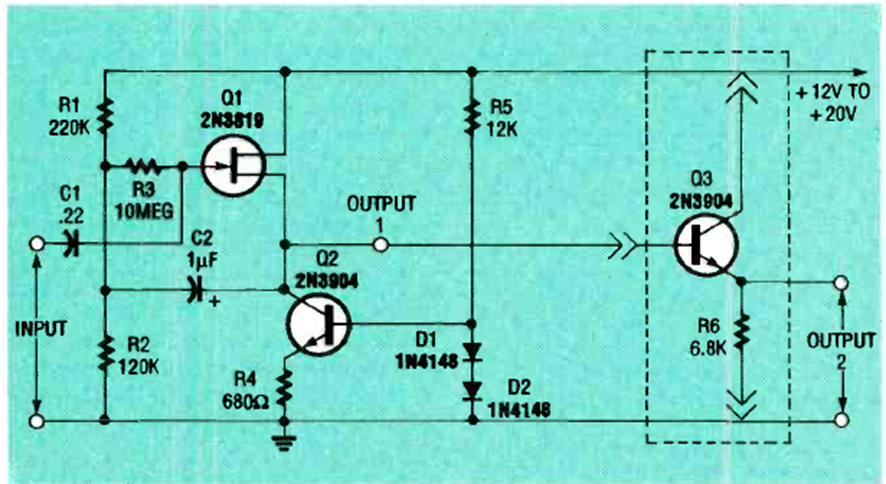

This circuit was found in the March 1993 issue of Electronics Now magazine. The circuit is a source follower with very high impedance and can drive a bipolar stage.
| Clique na imagem para ampliar |
Voltage Follower with JFET and 500 M ohm Input (CB25565E)
- Details
- Written by: Newton C. Braga
