Emitter Follower Relay (CB25610E)

Details
Written by: Newton C. Braga

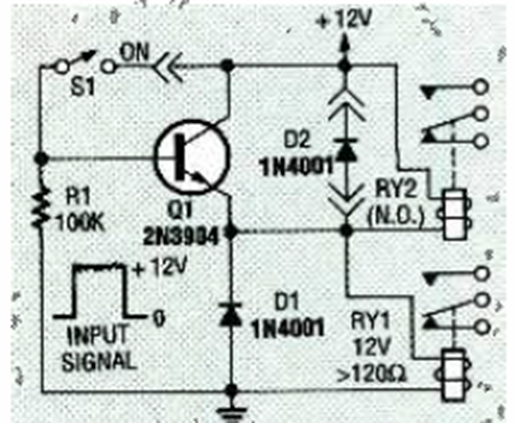

This single transistor shield was found in the October 1993 issue of Electronics Now magazine. The circuit is powered by voltage according to the relay.
