120-second timer 555 (CB25500E)

Details
Written by: Newton C. Braga

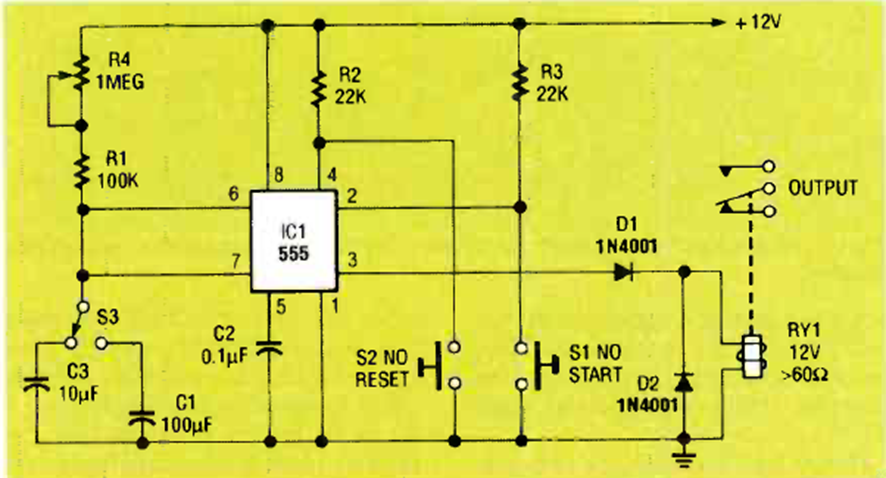

In the figure we have a simple timer with the 555 feeding a relay directly. The circuit is from the Radio Electronics magazine of September 1992. Other times can be obtained with another capacitor up to 1,000 uF.




| Clique na imagem para ampliar |
